General information on the Be-103 amphibian
- The Be-103 amphibious airplane is an aircraft of normal category and intended for passengers and cargo transportation to the areas that are hardly to be reached by other transport systems -with a number of water areas. The airplane is able to perform the VFR flights day & night.

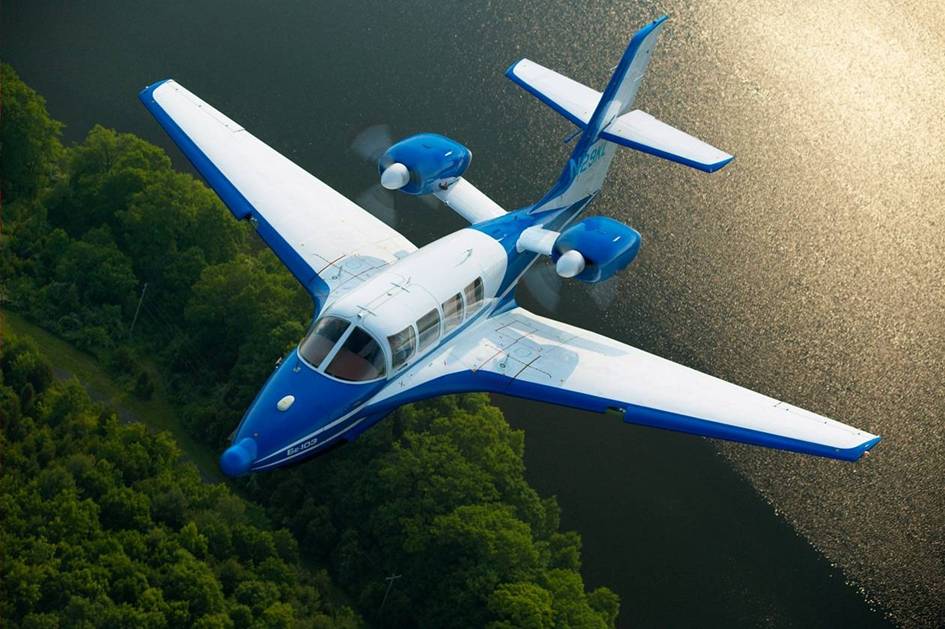

- The Be-103 amphibian is a low-wing monoplane, monoplane with a draught wing provided with a root rib extension, with all-moving horizontal tail and tricycle landing gear with nose wheel. There are fixed slats arranged on the leading edge of the wings at the area of the ailerons. Implementation of the concept with draught wing providing capability of aquaplaning on three points (step, LH and RH wings trailing edges) gives a considerable advantages in stability on water and seaworthiness.
- The airplane is equipped with two TCM IO-360ES4 piston engines, certified by FAA, Type Certificate E1CE. The engines with power of 210 h.p. each are installed on the pylons from both sides of the fuselage aft and above rear part of the wing center section. Such a configuration prevents water strikes to propellers while taking off and landing on water.
- Airframe design, layout, equipment and systems installed on the airplane meet the requirements of Part 23 of Russian Aviation Regulations for the airplanes of normal category and the Be-103 Certification basis, that considers amphibian operation features.
Weights
| Maximum taxi weight, kg (lb.) | 2340 | (5159) |
| Maximum take-off weight, kg (lb.) | 2330 | (5137) |
| Maximum payload, kg (lb.) | 338 | (734.5) |
| Max. weight without fuel, kg (lb.) | 2219 | (4888) |
| Max. fuel weight, kg (lb.) | 245 | (540) |
| Maximum landing weight, kg (lb.) | 2270 | (5005) |
Speeds
| VNE (Never Exceed), km/h (knots) | 240 | (130) |
| VNO (Structural cruising), km/h (knots) | 240 | (130) |
| VA (Maneuvering), km/h (knots) | 215 | (116) |
| VLE max. landing gear extension speed, km/h (knots) | 183 | (99) |
| VMC single engine minimum control speed | 115 | (62) |
| Rate of climb at sea level at takeoff weight of 2270 kg, m/s: | ||
| -2 engines operative | 5.2 | (17) |
| -single engine operation | 0.4 | (1.3) |
| Lift-off speed, km/h (knots) | 135-140 | (72-75) |
| Landing speed, km/h (knots) | 130-135 | (70-72) |
Dimensions
| Length (without radar), m (ft) | 10.65 | (35) |
| Wing span, m (ft) | 12.72 | (41.7) |
| Height, m (ft) | 3.76 | (12.3) |
| Wing area, m2 (sq. ft) | 25.1 | 270.2 |
| Fuselage length, m (ft) | 9.96 | (32.7) |
| Fuselage maximum width, m (ft) | 1.35 | (4.43) |
| Cabin length, m (ft) | 3.2 | (10.5) |
| Cabin width, m (ft) | 1.25 | (4.1) |
| Cabin height, m (ft) | 1.23 | (4) |
| Cabin volume , m3 (ft3) | 4.6 m3 | (162) |
| Entrance and emergency doors , m (ft) | 1.3 х 0.9 | (4.3 х 3) |
| Aircraft ground turn radius, m (ft) | 8.175 | (26.8) |
Limitations
| Max positive operational maneuvering g-load | +3.45 |
| Max negative operational maneuvering g-load | -1.45 |
| Max operational flight altitude, m (ft) | 3000 (10000) |
| Reserve remaining fuel, kg (lb) | 10 (33) |
- Take-off and landing on water is prohibited at night.
- It is prohibited to operate the aircraft under actual and predicted icing conditions (outdoor temperature lower +5°C if raining, drizzling or snowing).
- It is prohibited to flight within thunderstorm area.
Airdromes
| airdrome elevation not more than, m (ft) | 900 (3000) |
| runway length not less than, m (ft) | 1188 (3900) |
| max crosswind, m/s (knots) | 6 (11.6) |
| max down wind | 2 (3.9) |
| outside temperature | -30°C to +40°C |
Water Areas
| length not less than, m (ft) | 1500 (5000) |
| width not less than, m (ft) | 100 (330) |
| depth at rough water of 0.5 ft not less than, m (ft) | 1.5 (4.9) |
| max wind wave height, m (ft) | 1 (3) |
| max crosswind, m/s (knots) | 3 (5.8) |
| max down wind, m/s (knots) | 0 |
| outside temperature at ground | +5°C to +40°C |

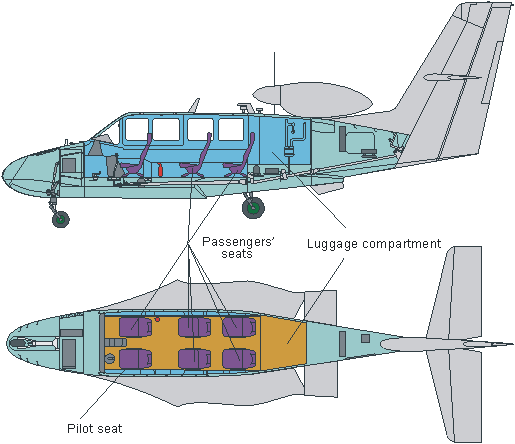

Basic Passenger Variant
- Cabin capacity － 6 seats.
- In the cabin there is a pilot’s working place and passengers’ seats per 2 in a row with central pass of 200 mm (8 in.), seats spacing of 1220 mm (47 in.) and 860 mm (34 in.).
- In the front part of the cabin, the maritime equipment - anchor, line, hock and others - is located. The back wall of a cabin separates it from a luggage compartment (capacity 0,8 m3 (28 cub.ft.).
- In the aft part of the luggage compartment, the electrical and heating equipments are located.
